Z-turn is a [cheap] chinese board featuring a Zynq processor. (Overview:pdf).

(Zynqs incorporate both a PL and a PS unit).
(My board has Zynq7020 with a dual core Arm & 80K logic cells).
I’ll try to keep this repo “Beginner Friendly”.. (This is NOT a tutorial: Corrections on each, next, chapter 😏).
I prefer a top-down approach.

• (Versions): Vitis/Vivado @ 2023.2.2

---

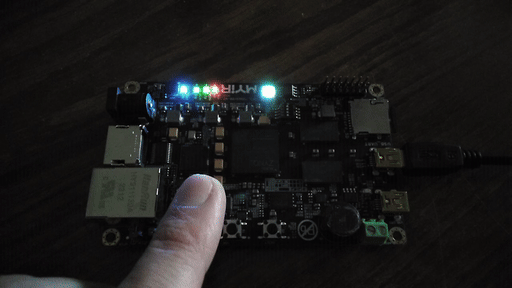

Goals: Gotta blink ‘em all, Blinkemall!! 🧶🧶

• 0: Preliminary:

  • Boot process
  • Adding the board
  • Advanced: Creating a custom module
  • Peripherals: MIO

• 1: Standalone:

  • Chapter 1: PL
    Next(Vitis)
  • Chapter 2: PL&PS // asynced // polling
    Next(GPIO)
  • Chapter 3: PL&PS // asynced // interrupt
  • Chapter 4: PL&PS // synced(AXI) // interrupt
    Next(Code)
  • Chapter X: BOOT.bin@QSPI(SPI@Flash)

• 2: Linux:

  • Chapter 0: Preliminaries: Installation & building
    Next(Creating a project)
  • Chapter 1: Hellow World
    Next(Linux part)
  • Chapter 2: Linux GPIO: LEDs w/ PL(CLK)
    Next: PS(BUTTON) 2 PL

• Goals:

  • DMA?

---

(Various problems and solutions)

---

Notes

• IO-planner
• xic: No need to download updates. Run xic from [].

---

References

• Getting Started with the MYIR Z-turn (moved from ?? to FPGA Developer).
• Z-turn Board Tutorial Book (don’t know how I found that)!
• Original source code
• unsure: https://www.youtube.com/watch?v=FujoiUMhRdQ
• schematic (pdf)
• Device Tree Source (.dts?) reference (site)

---

Extra: Tools used:

• OS: Linux(Gentoo)
• Markdown editor: ReText
• Serial monitors: picocom and CuteCom
• [Vivado] Export [diagram] to svg: $ write_bd_layout -force -format svg -verbose /tmp/design.svg
• Markdown syntax (github)
  Stack overflow tricks (stack)
  Mastering Markdown (gitbook) —
