Z-turn-Board-V2-Diary

Blink all [possible].

Phase 2 [Vitis]

Outline

• Open workspace.
• Create new platform, from our exported .xsa which included the bitstream
  • (Exported is the bootloader also).
  • Use our exported .xsa for our new platform.
  • (“Standalone” is fine for our needs).
    • (“Generate Boot artifacts” if there is a choice).
  • Build
• “Create Boot Image”
  • Set .bif location
  • Add [[boot] image] partitons
    • Bootloader: It’s already been built at step “Build”, [probably] due to “Generate Boot Artifacts” option.
    • Bitstream (our vhdl code ;)
• Format an SD card to FAT32. And paste, the generated BOOT.bin, there.
• (Proper jumpers need to be set, on the “Z-turn board”: J1/J2: OPEN/CLOSED).
• (TODO: Check: FAT16?: Boot flag?).

---

Steps

Open workspace. (I.e., open a folder through vitis, to be used as workspace). –

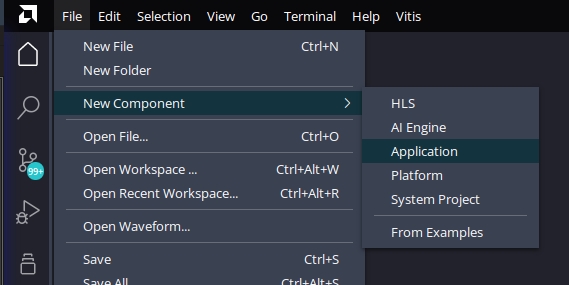

New platform

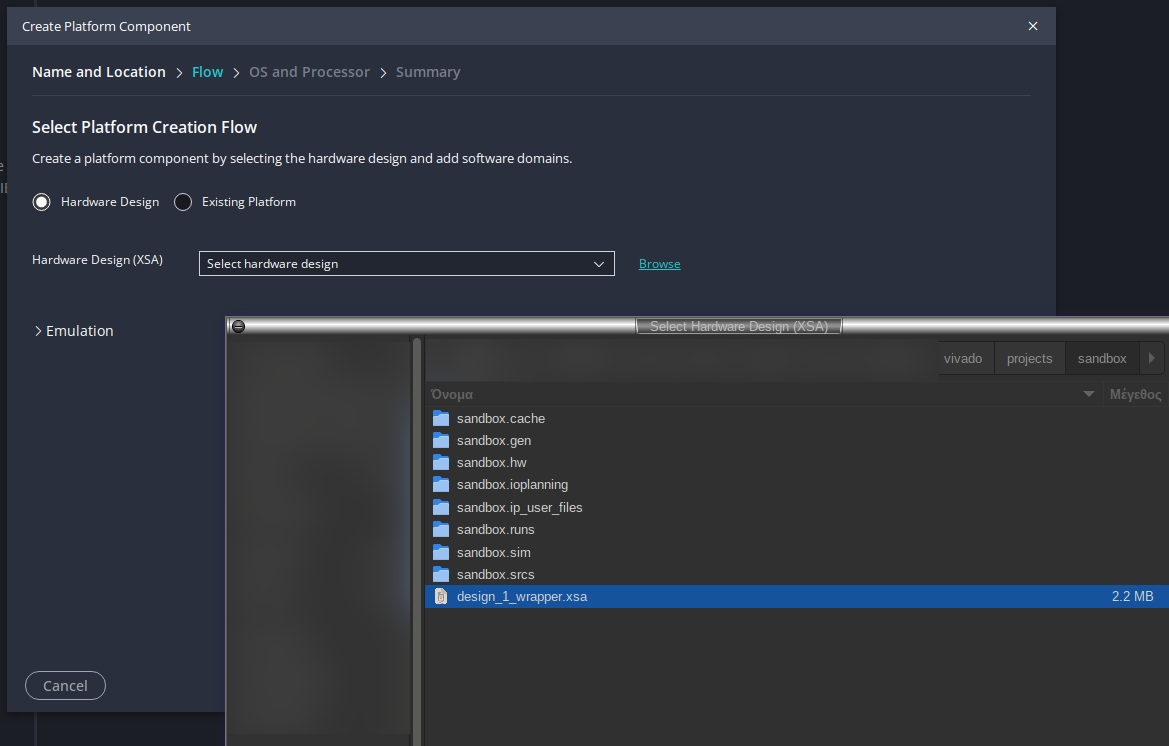

Use [the generated] .xsa

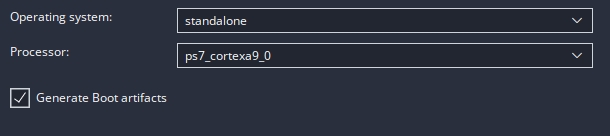

Standalone (i.e., not linux)

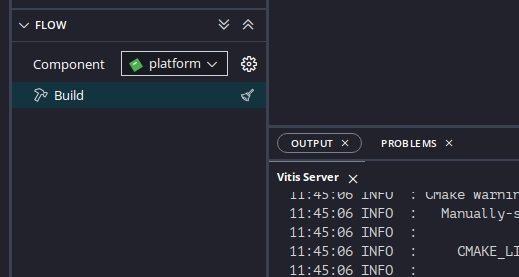

Build

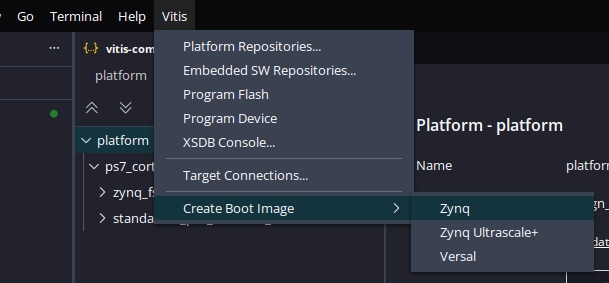

“Create Boot Image”

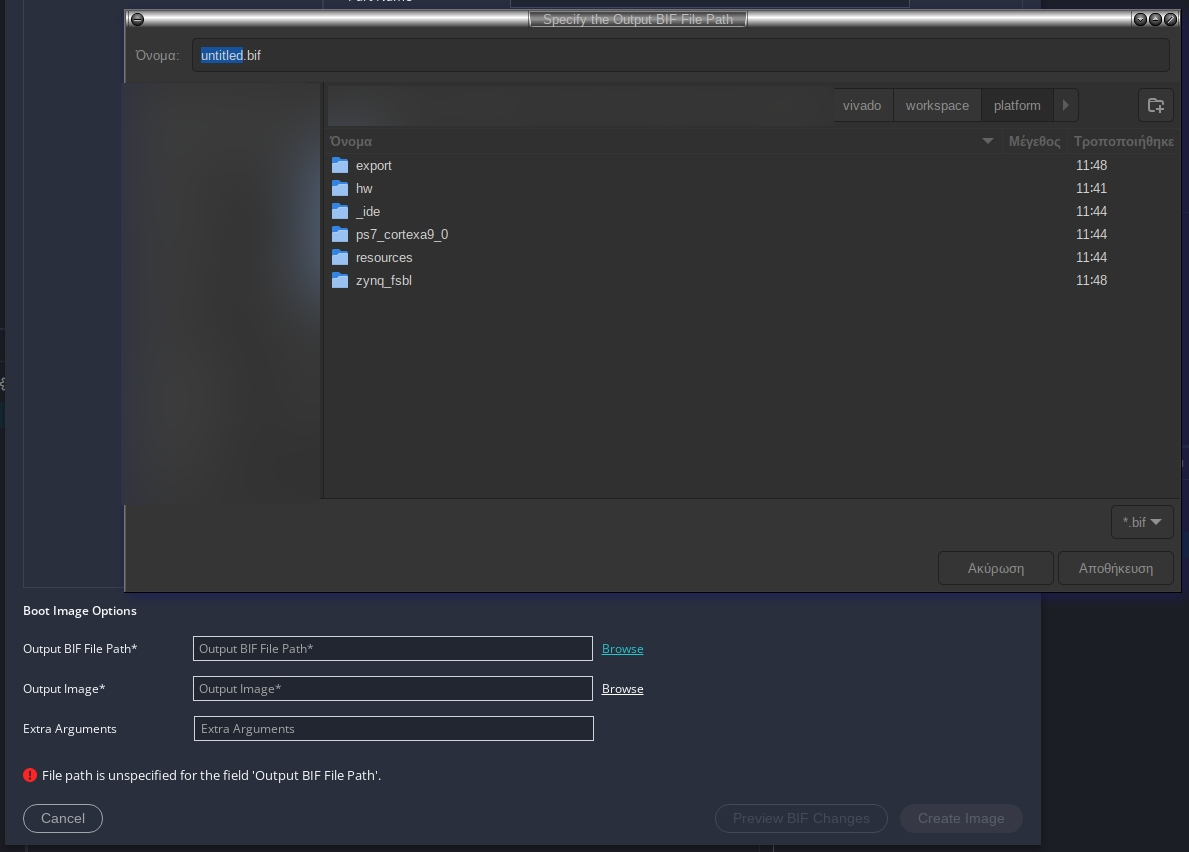

Set .bif location

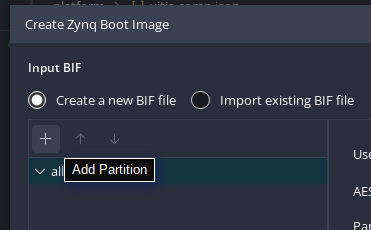

Add partitions

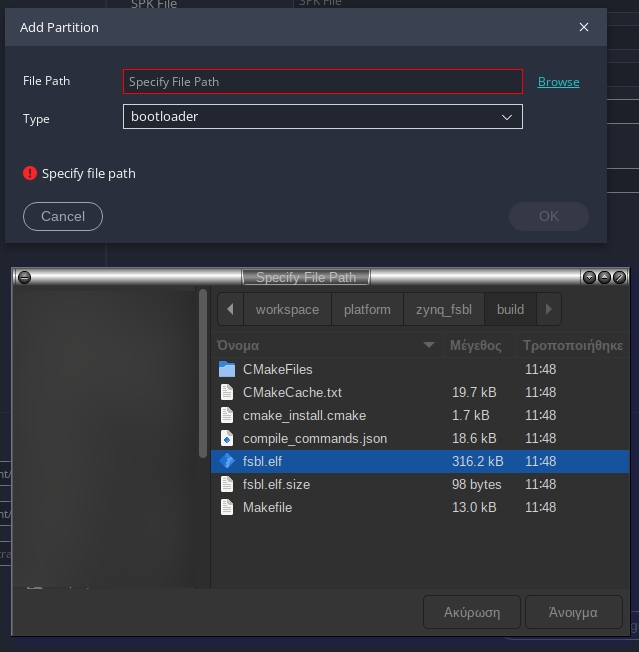

Bootloader (FSBL)

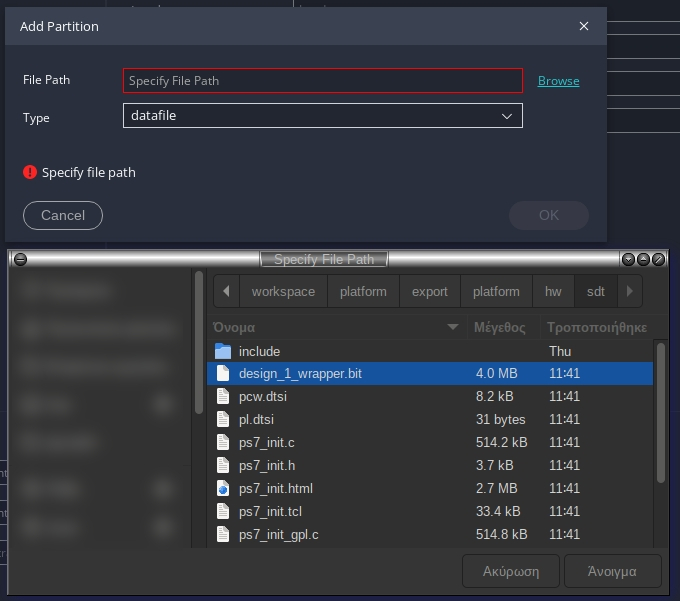

Bitstream (VHDL)

---

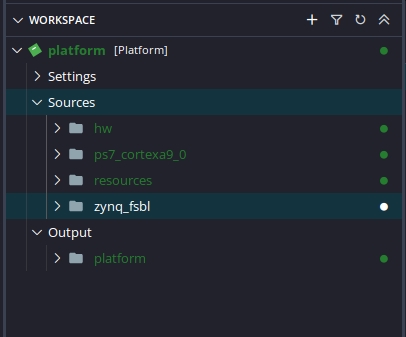

Final [state]

---

Notes:

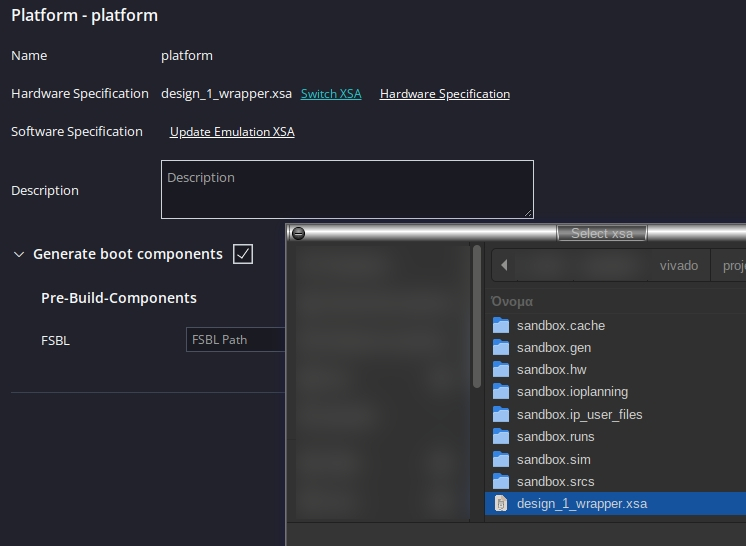

After each “platform export” [from vivado], one needs to update the .xsa file:

And rebuild..

---

Problems.

---
