Z-turn-Board-V2-Diary

Blink all [possible].

Phase 1 [Vivado]

FIXME: Create project with “Project is an extensible Vitis platform (?)”

Accessible to the PL:

• Buzzer
• RGB

Limited to the PS:

• LED1/2
• CAN
• Button

Lets blink, the available ones, around 1Hz +- 1.

---

Code:

library IEEE;
use IEEE.STD_LOGIC_1164.all;
use IEEE.NUMERIC_STD.all;       -- Operations: addition/..

-- ------------------------------------------ --
-- =                 Entity                 = --
-- ------------------------------------------ --
-- Description: Functions:
--      Blink RGB and buzzer
-- Downscaler:
--      Count up to CLK's frequency. Keep the MSbits.
-- -
entity Blink is
    Generic(
        N: natural := 27);  -- Primitive downscaling
    Port(
        CLK        : in  STD_LOGIC;
        RESET      : in  STD_LOGIC;
        --
    	BUZZER     : out STD_LOGIC;
    	RGB        : out STD_LOGIC_VECTOR(2 downto 0));
end Blink;

-- ------------------------------------------------ --
-- =                 Architecture                 = --
-- ------------------------------------------------ --
architecture Behavioral of Blink is
    signal state    : std_logic_vector(N - 1 downto 0) := (others => '0');    -- downscale to 1b0Hz
begin
    -- Downscale: Count up to 2**N, close to CLK's frequency.
    -- -
    process (CLK, RESET)
        variable v: natural range 2**N - 1 downto 0 := 0;
    begin
        state <= std_logic_vector(to_unsigned(v, N));
        if rising_edge(CLK) then
--            if RESET = '1' then         -- Reset
--                v := 0;
--            else
                  v := v + 1;
--            end if;
        end if;
    end process;

    -- Blink around 1Hz +- 1, by following the MSB - 1 bit.
    -- -
    RGB     <= state(N - 1 downto N - 3);
    BUZZER  <= state(N - 2);

end Behavioral;

---

Procedure:

Outline:

• Create a VHDL code
• Create a block design
  • Add Zynq
    • Let it automate: Blocks
    • Remove: Secondary_clock/AXI_interfaces/I2C/etc
      • IMPORTANT: Leave SD card support ON! This way, VHDL will be transferred to the PL. (CONFIRMED).
    • Create Wrapper
    • Set default clock (after wrapper). (Open “Platform Setup”).
  • Add VHDL code as module
    • Let it automate: Connections
  • Make Buzzer & RGB external (will link them to pins later)
• Save block design
• Open “Elaborated Design” in order to set RGB and Buzzer pins.
• “Generate Bitstream”
• Export Platform: “Include Bitstream”
• Phase 2: Open Vitis

Steps

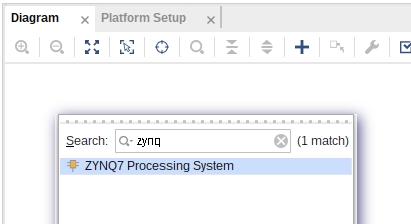

Add Zynq

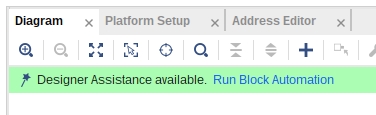

Block automation

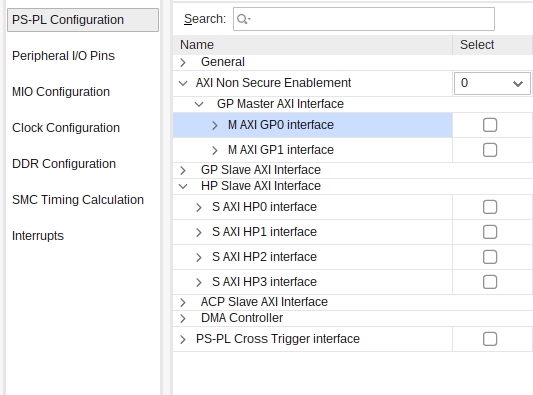

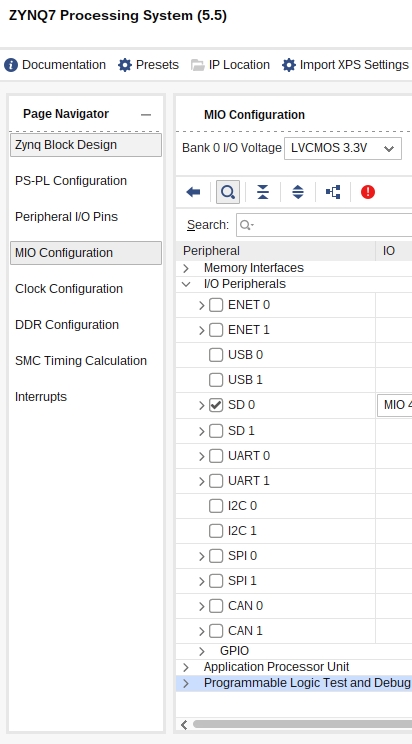

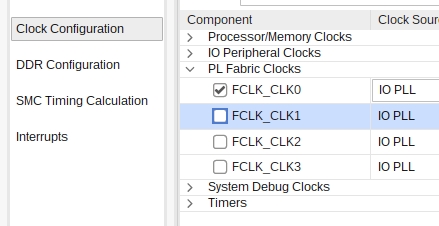

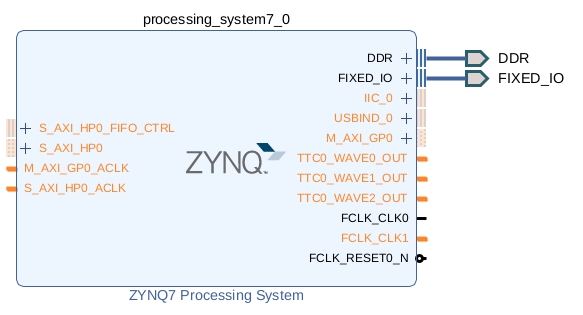

Remove extraneous (optional). IMPORTANT: Leave SD enabled (used for transfer of VHDL to the PL).

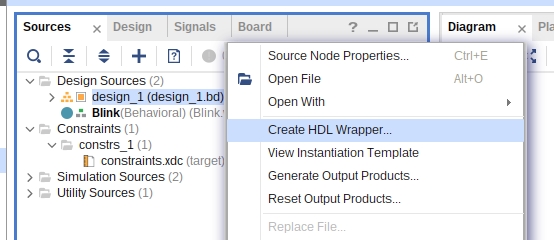

Create wrapper

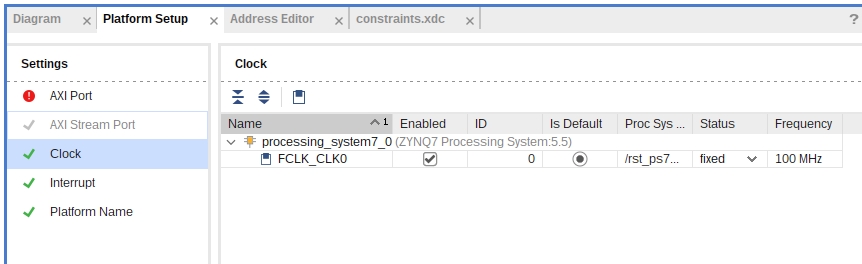

Set default CLK (after wrapper (in order to set “reset”))

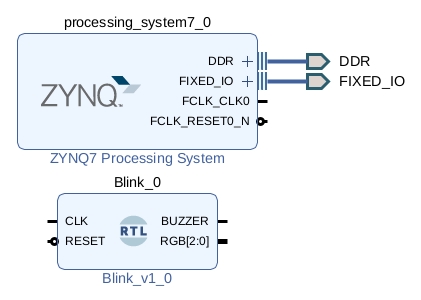

Add module (VHDL)

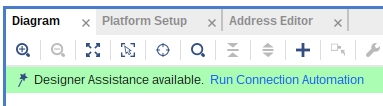

Automate

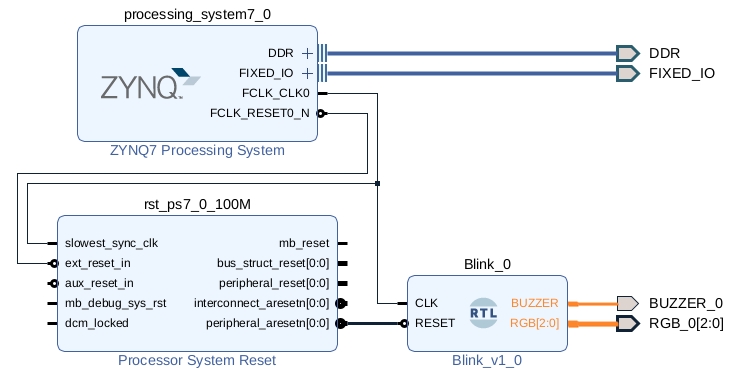

Make ports(pins) external

Save block design –

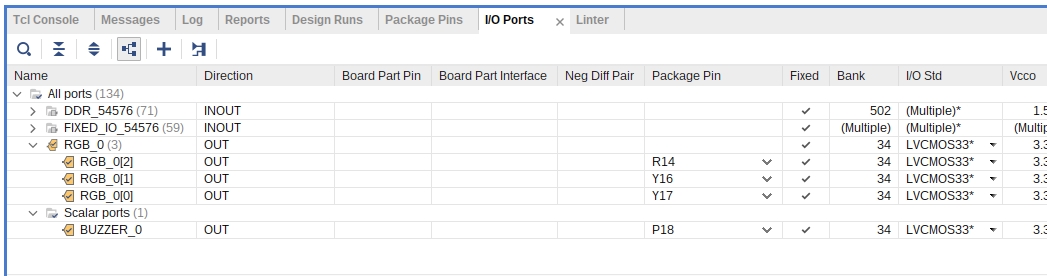

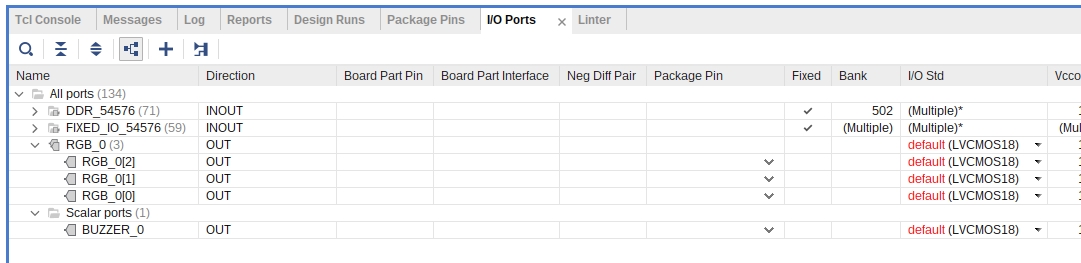

Set pins through “Open Elaborated Design”

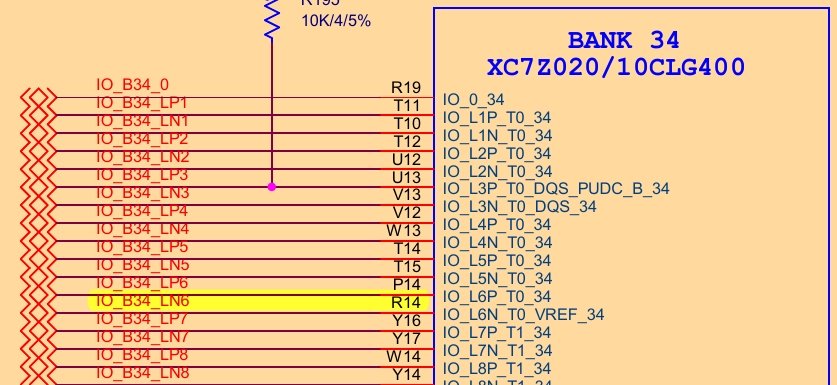

Find the corresponding pins in the schematic

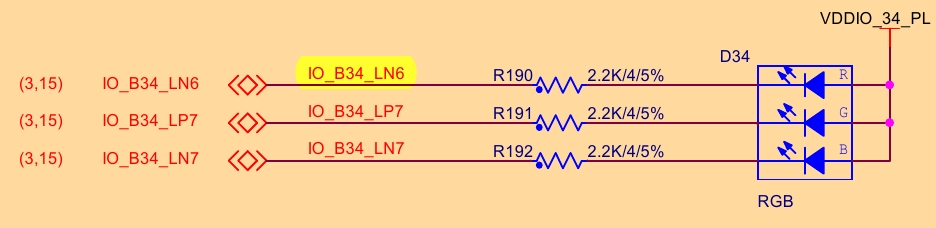

• RGB:

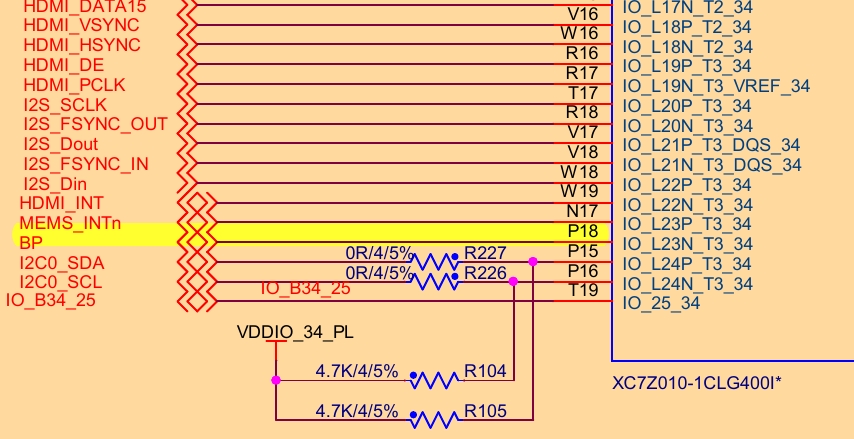

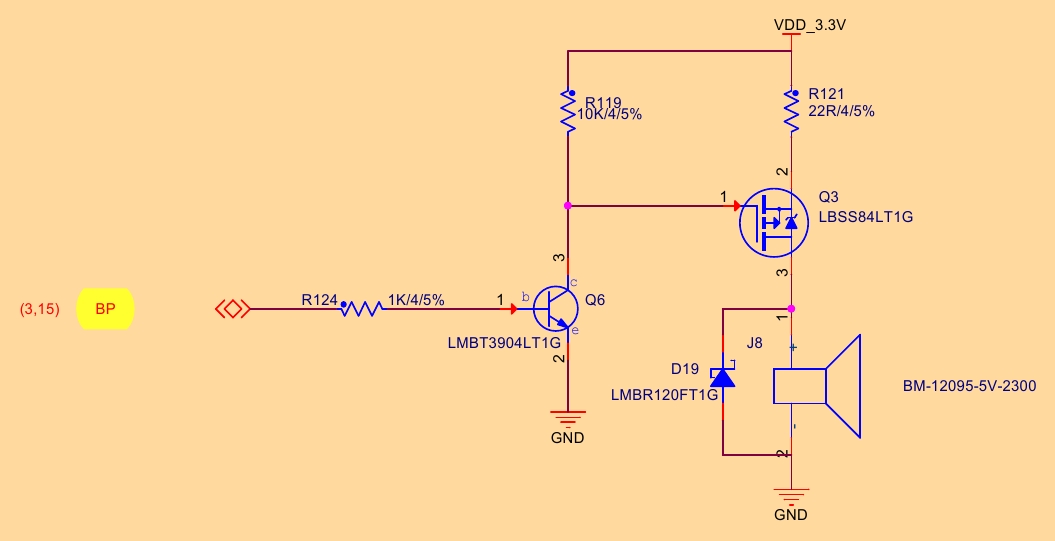

• Buzzer:

Save changes: Will create constraints.xdc file.

Generate bitstream –

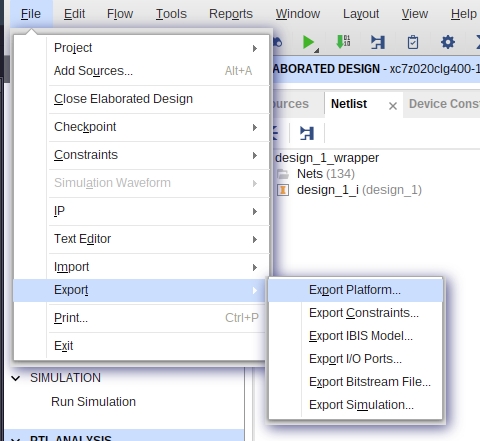

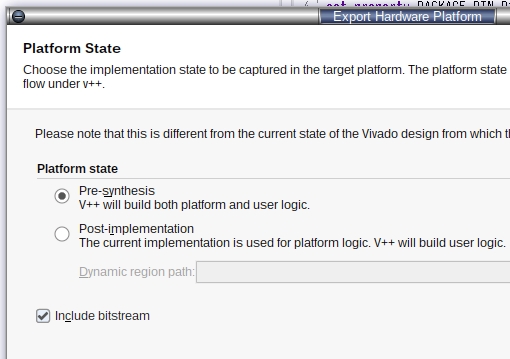

Export hardware (or platform): IMPORTANT: “Include Bitstream”

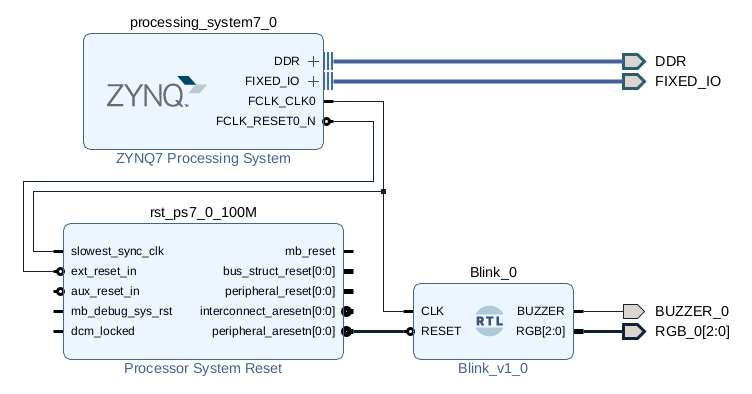

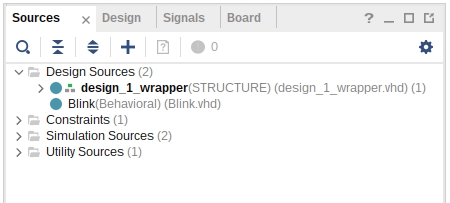

Final [state]

---

TODO: Second method: Export bitsream and use Vitis:Template:FSBL

---

Phase 2: Open Vitis

---
