Z-turn-Board-V2-Diary

Assuming you understand the previous, PL, part..

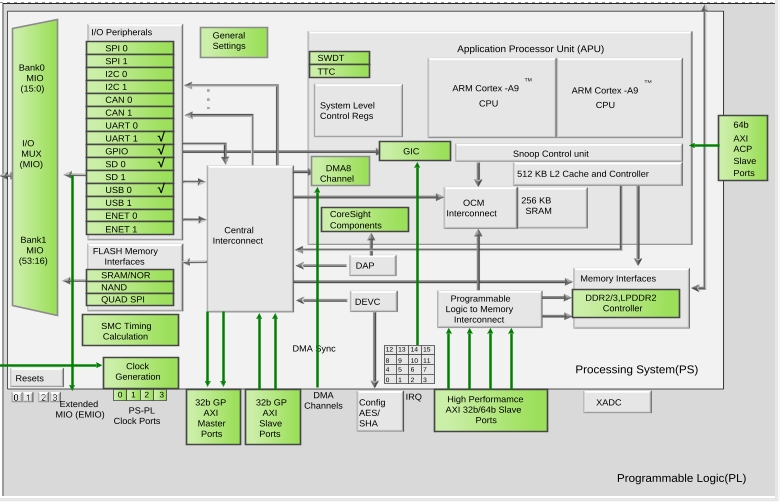

“Standalone” is the type of OS that will run on the PS. Alteratives are “FreeRTOS” and “Linux”.

PL&PS // asynced // polling

(As per “PL”), We’ll blink:

• CAN: 2 bits
• User leds: 1 and 2s
• User Button: (input only)

---

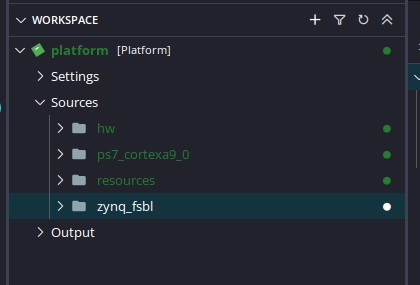

We need a similar platform to the PL one, but without disabling all the peripherals. (We probably need UART1 and USB)..

---

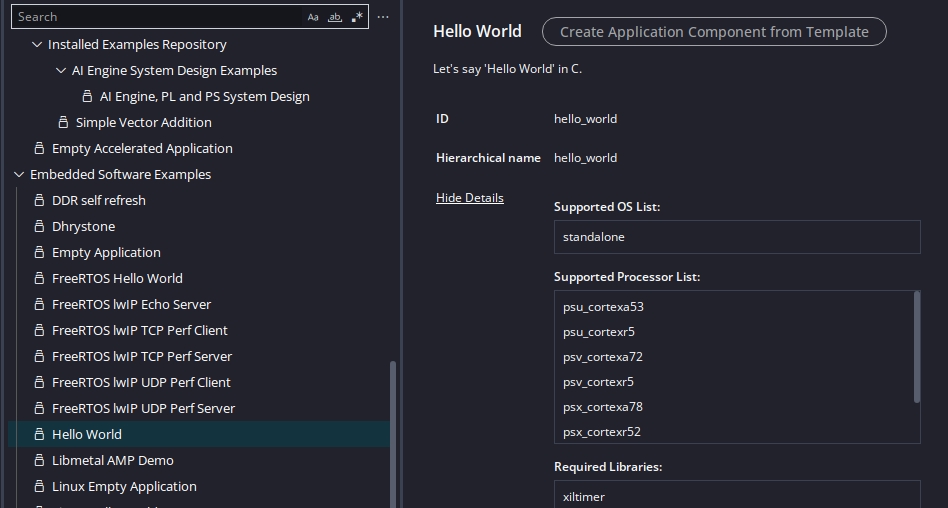

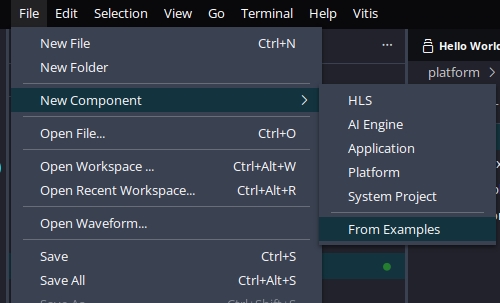

Let’s add a “Hellow World” application. (Not a “Linux Hellow World”)!

---

Pins:

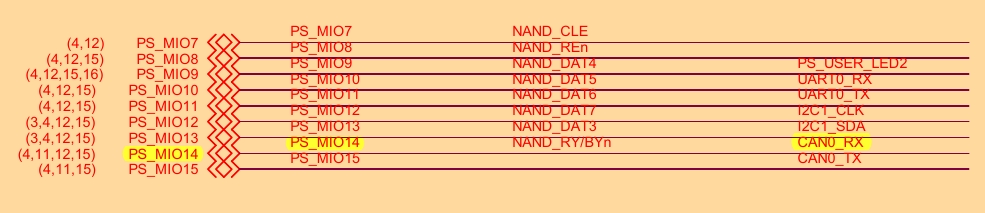

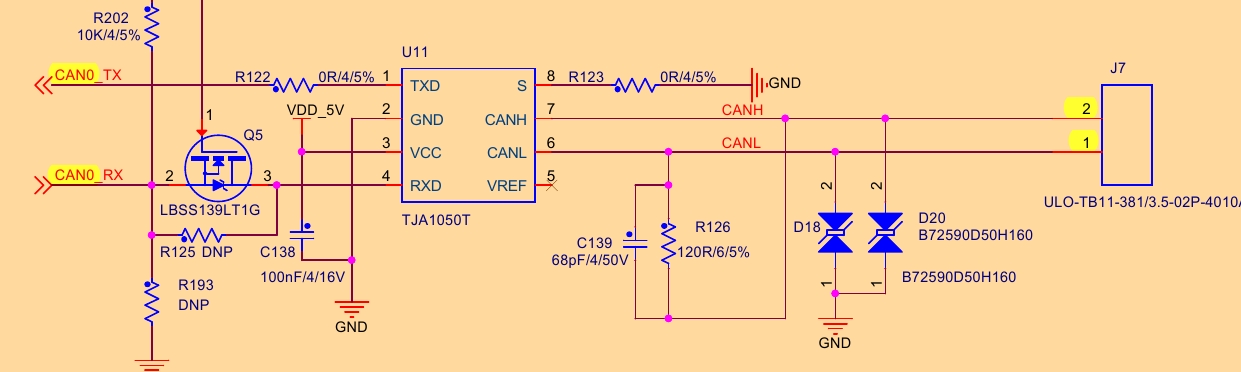

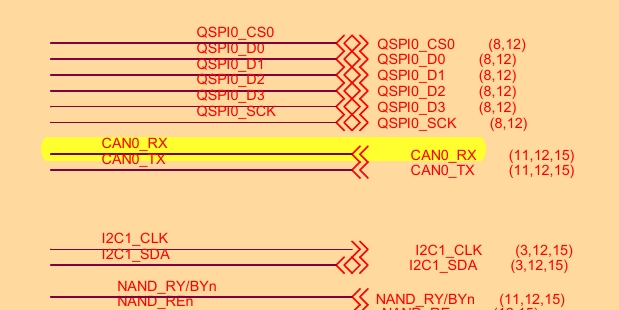

CAN: MIO{14,15}

Oops: CAN not be 😝!

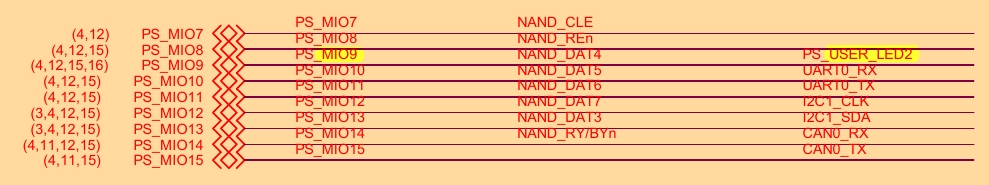

LED: 1,2: MIO{0,9}

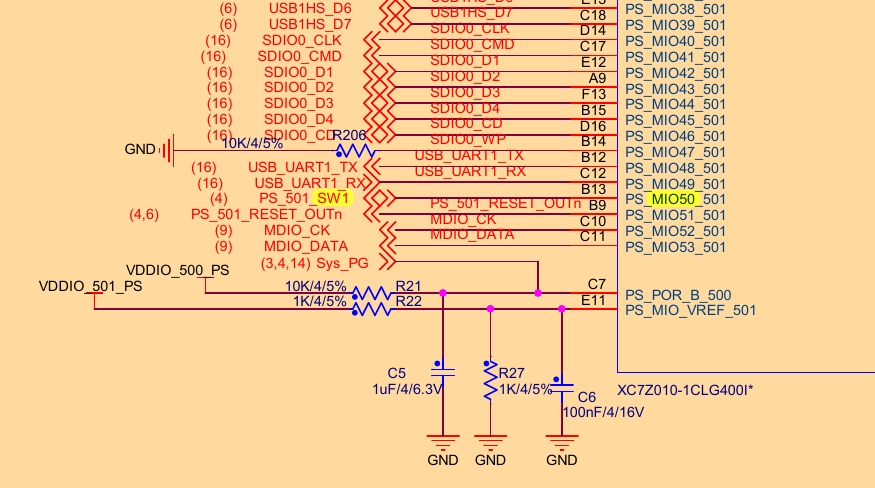

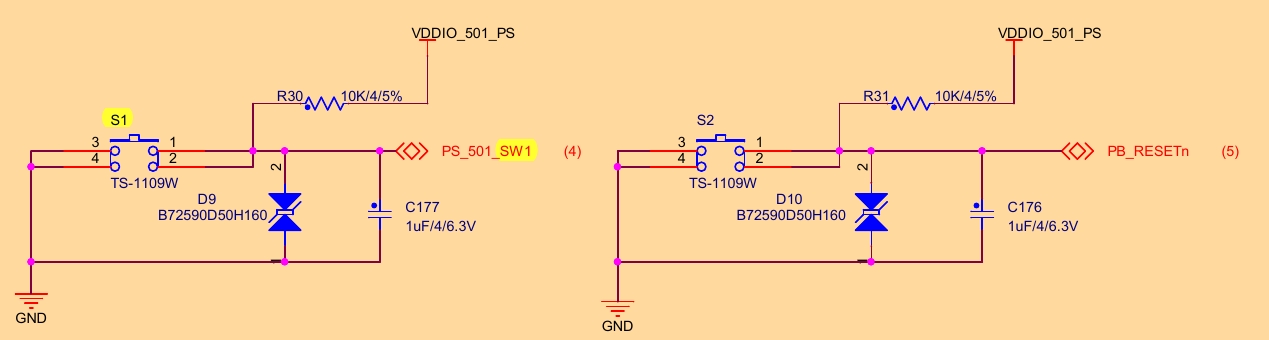

Button: MIO{50}

---

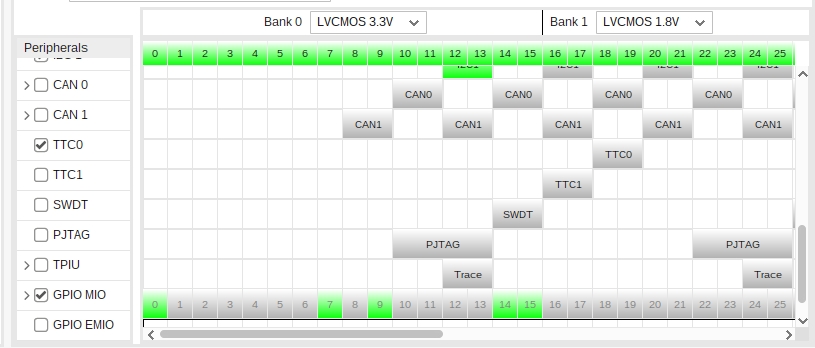

Releasing the pins:

Bound pins: CAN0

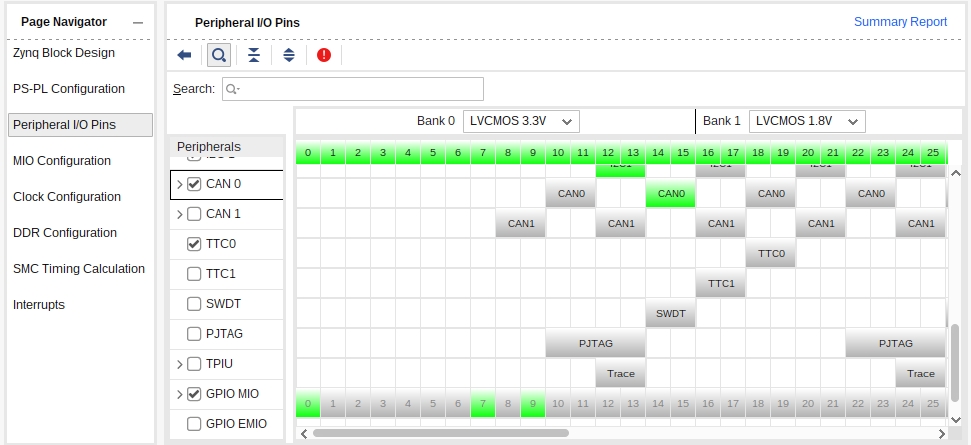

Vivado:

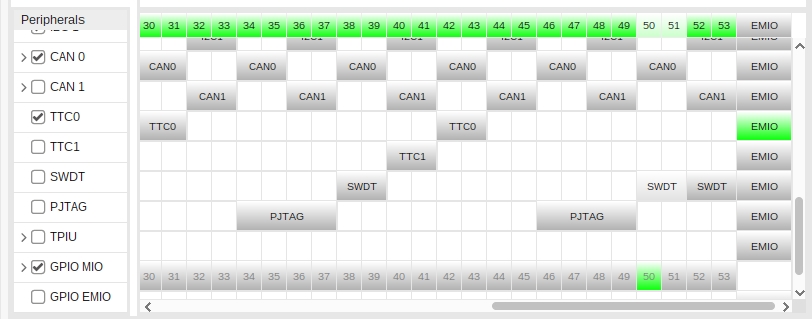

Releasing CAN0

---

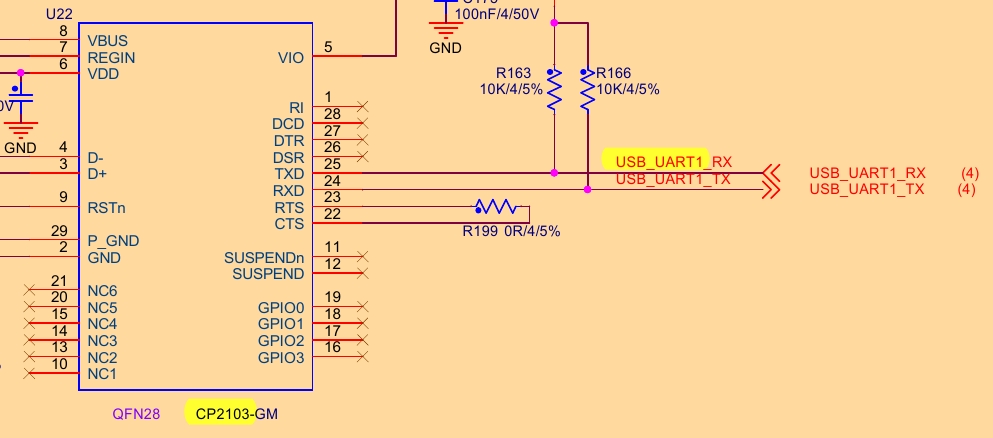

[Identifying] USB/UART dependency:

---

Phase 2: PS GPIO

---
